PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening

Place of Origin : Guangdong, China

Brand Name : Guanhong

Packaging Details : wooden packing

Supply Ability : 20 Unit/Units per Month

Price : $10,800.00/sets >=1 sets

Type : Capping Machine

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Motor

Condition : New

Application : Food, Beverage, Commodity, Medical, Chemical

Driven Type : Pneumatic

Automatic Grade : Automatic

Voltage : 220V 50-60HZ, 220V 50Hz

Packaging Type : Wooden case

Packaging Material : Wood

Weight : 525 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Capping method : servo torque screw cap

Suitable specifications : according to the bottle sample provided by the customer

Capping range : 10~55mm

Capping speed : 10~35 bottles/minute

Program control : PLC+touch screen

Material of contact parts : 304# stainless steel

Machine power : 1.5kw

Air pressure : 06~0.8MPa

Bottle cap type : plastic/ metal round cap, pump head cap, duckbill cap, etc.

Marketing Type : Ordinary Product

Port : Guangzhou

MOQ : 1 set

Contact Now

Recommend Products
Product Overview

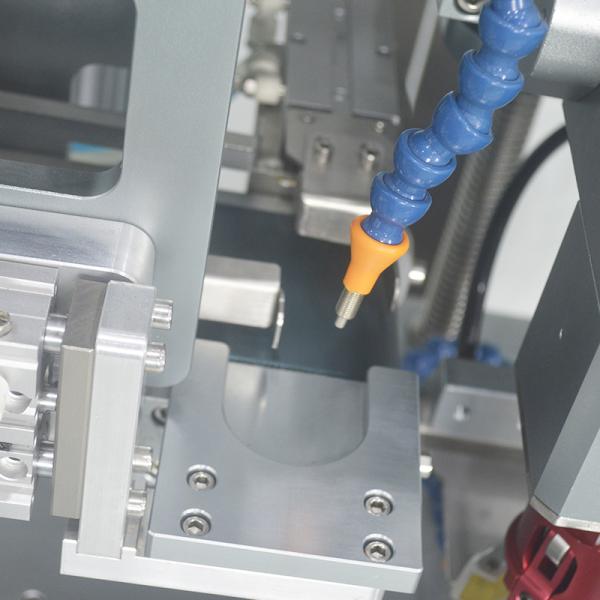

Automatic single head grab type servo screw capping machine
Equipment overview:
This device uses servo torque screw cap, the torque of the cap can be adjusted. The machine integrates automatic cap sorting, cap input, capping. No bottle to capping, cap rejection automatic alarm function, high degree of automation. Automatic screw capping
for plastic/ metal round cap, pump caps, and duckbill caps. Applicable to medicine, food, cosmetics, oil, biological, pesticides, chemical, chemical and other industries, play a role in
leakproof, anti-theft.
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
Technical Parameters:
1.Capping method: servo torque screw cap, screw cap size can be adjusted
2.Capping range: Φ10~φ55mm (can be customized according to requirements)
3.Bottle height: 50~300mm (can be customized according to requirements)
4.Capping speed: 10~35 bottles/minute
5.Voltage: 220V 50Hz
6.Power: 1.5KW
7.Air pressure: 06~0.8MPa
8.Bottle cap type: plastic/ metal round cap, pump head cap, duckbill cap, etc.
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
Product Paramenters
NO.
Item
Data
1
Capping range
Φ10~φ55mm (can be customized according to requirements)
2
Capping height
Φ10~φ55mm (can be customized according to requirements)
3
Screw capping form
servo torque screw cap, screw cap size can be adjusted
4
Capping head
1 head
5
Speed
10~35 bottles/minute (Increasing capping heads can increase the speed)
6
Machine power
1.5KW
7
Voltage
AC220 50HZ
8
Pressure
0.6-0.8Mpa
9
Program control
PLC+ touch screen
Company Profile
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
Packaging & Delivery
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
Customer Photos
PET Bottle Screw Capping Machine with Single Head Automatic Screw Tightening
FAQ
1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted. For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before we send the machine, you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
